Trane furnace error codes provide crucial information about system malfunctions. These codes help diagnose issues quickly and efficiently, enabling targeted troubleshooting and repairs.
Common Trane Furnace Error Codes List
Trane furnaces are known for their reliability and efficiency, but like any mechanical device, they can experience issues from time to time. When a problem arises, the furnace will display an error code through a blinking red light. Understanding these error codes is crucial for diagnosing and resolving the issue promptly.
Blinking Light Patterns
The number of blinks and the speed at which the red light blinks determine the specific error code. Here are some common blinking patterns:
- Constant slow blinking: Furnace is functioning normally
- Constant fast blinking: Furnace is functioning normally
- Red light constant ON: Control failure, indicating a control panel issue
- Red light constant OFF: Check power, as the furnace may be off
Error Codes and Their Meanings
| Error Code | Meaning | Potential Issue |
|---|---|---|
| 2 blinks | Flame failure (retries exceeded) | Gas supply issue, flame rod not sensing flame, wiring issue, etc. |
| 3 blinks | Pressure switch problem | Blockage in vent, condensate drain plugged, etc. |
| 4 blinks | Temperature switch problem / Over temperature limit | Plugged filter, plugged secondary heat exchanger, ductwork issue, etc. |
| 5 blinks | Flame sensed when no flame should be present | Leaky gas valve, stuck gas valve, defective flame sensor, etc. |
| 6 blinks | 115 VAC power reversed polarity, poor grounding | Issue with line voltage polarity or wiring, etc. |
| 7 blinks | Gas valve circuit error | Gas valve issue |
| 8 blinks | Low flame sense signal | Flame sensor malfunction, low gas pressure, etc. |
| 9 blinks | Check igniter | Check igniter |
It’s important to note that while these error codes provide valuable information, they may not always pinpoint the exact problem. In some cases, further investigation and troubleshooting may be required to identify the root cause of the issue.
If you encounter an error code on your Trane furnace, it’s recommended to consult the owner’s manual or contact a professional HVAC technician for assistance. Attempting to repair the furnace without proper knowledge and expertise can be dangerous and may void the warranty.
By familiarizing yourself with these common Trane furnace error codes, you can quickly identify potential issues and take the necessary steps to restore your furnace’s operation, ensuring a comfortable and warm home.
Diagnostic Tools and Equipment Needed
Proper tools are essential for diagnosing Trane furnace error codes effectively. A digital multimeter is crucial for measuring voltage, resistance, and continuity in electrical components.
A manometer helps measure gas pressure in the furnace system. Technicians should have a combustion analyzer to check the efficiency and safety of the burner operation.
An infrared thermometer allows for quick temperature readings of various furnace parts without direct contact. A carbon monoxide detector is vital for ensuring safe working conditions and identifying potential leaks.
Basic hand tools like screwdrivers, pliers, and wrenches are necessary for accessing internal components. A flashlight aids in visual inspections of hard-to-reach areas within the furnace.
Protective equipment such as safety glasses and gloves should always be used. A laptop or tablet with access to Trane’s technical documentation can provide valuable reference information during troubleshooting.
For more advanced diagnostics, a flue gas analyzer may be required to assess combustion efficiency and emissions. Some technicians also use borescopes for detailed visual inspections of burners and heat exchangers.
Step-by-Step Troubleshooting Guide
Diagnosing and resolving Trane furnace issues requires a systematic approach. Following a structured troubleshooting process helps identify and address common problems efficiently while maintaining safety.
Initial Assessment and Safety Precautions
Turn off the furnace power before starting any inspection. Locate the main power switch or circuit breaker. Check for gas odors. If detected, evacuate immediately and contact the gas company.
Ensure proper ventilation in the work area. Wear safety glasses and gloves. Have a flashlight and multimeter ready. Familiarize yourself with the furnace model and manual.
Verify the thermostat settings and battery condition. Confirm that the furnace filter is clean and properly installed.
Power Supply and Circuit Breaker Issues
Inspect the electrical panel for tripped breakers or blown fuses. Reset if necessary. Check the furnace power switch is in the “On” position.
Test the outlet voltage using a multimeter. Ensure it matches the furnace’s required voltage. Examine power cords for damage or loose connections.
If power issues persist, consult an electrician to assess the home’s electrical system.
Thermostat and Control Board Inspections
Verify thermostat compatibility with the Trane furnace model. Replace batteries if needed. Clean any dust or debris from the thermostat’s interior.
Check thermostat wiring connections. Ensure they are secure and correctly placed. Test the thermostat by adjusting temperature settings.

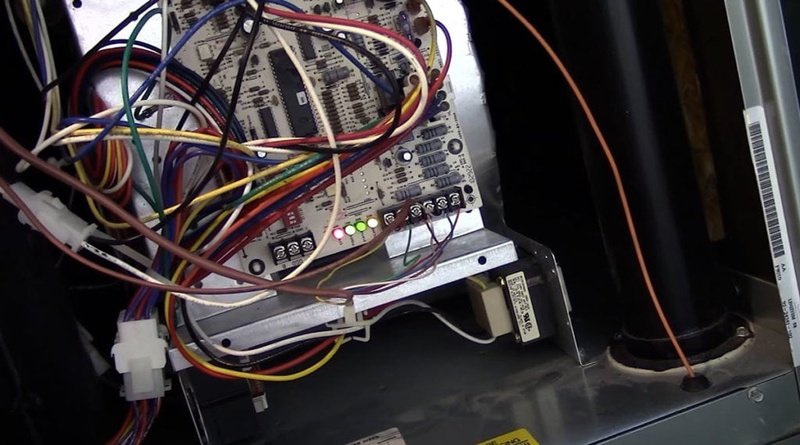

Inspect the furnace control board for signs of damage or burnt components. Look for error code displays or flashing lights on the control panel.
Ignition System and Flame Sensor Problems
Examine the ignitor for cracks or wear. Clean the flame sensor with fine-grit sandpaper. Ensure proper positioning of both components.
Check gas valve operation. Listen for clicking sounds during ignition attempts. Verify gas supply is on and pressure is adequate.
Inspect the burners for debris or corrosion. Clean if necessary. Observe the flame color and pattern during operation.
Blower Motor and Capacitor Malfunctions
Listen for unusual noises from the blower motor. Check for smooth rotation when power is off. Lubricate motor bearings if accessible.
Test the capacitor with a multimeter. Replace if faulty. Inspect blower wheel for debris or damage.
Verify proper belt tension if applicable. Replace worn or cracked belts. Clean the blower assembly to improve efficiency.
Air Flow and Filter Blockages
Replace or clean the air filter regularly. Check for proper filter size and installation. Inspect return air grilles for obstructions.
Examine ductwork for leaks, kinks, or blockages. Seal any gaps with foil tape. Clean supply and return vents throughout the home.
Verify dampers are open and functioning correctly. Ensure furniture or curtains don’t block airflow from vents.
Pressure Switch and Limit Switch Concerns
Inspect pressure switch tubing for cracks or blockages. Clean or replace as needed. Verify proper switch operation with a multimeter.
Check the draft inducer motor for smooth operation. Clean the exhaust vent pipe of any obstructions. Ensure proper slope for condensation drainage.
Test limit switch continuity. Replace if faulty. Examine heat exchanger for cracks or corrosion that may trigger limit switch activation.
Condensate Drain and Trap Clogs
Locate the condensate drain line and trap. Clear any visible blockages. Flush the system with a mixture of water and vinegar.
Ensure proper slope of the drain line for efficient water flow. Check for leaks or damage to the drain pan.
Clean the condensate pump if present. Verify its proper operation. Consider installing a safety float switch to prevent overflow.
Reset Procedures for Trane Furnaces
Resetting a Trane furnace can often resolve minor issues and error codes. The process typically involves turning the power off and on again.
To reset most Trane furnace models:
- Locate the furnace power switch or circuit breaker
- Turn it off and wait 30 seconds
- Turn the power back on
Some Trane furnaces have a dedicated reset button. This is usually red and located on the blower compartment or control board. Press and hold for 5-10 seconds to reset.
For Trane furnaces with a thermostat reset:
- Turn the thermostat to “Off”
- Wait 5 minutes
- Switch it back to “Heat” mode
If error codes persist after resetting, consult the user manual for model-specific troubleshooting steps. Professional service may be required for complex issues.
Always exercise caution when working with electrical components. If unsure about any reset procedure, contact a qualified HVAC technician for assistance.
Regular maintenance can prevent many furnace problems. Schedule annual inspections to keep the system running efficiently and reduce the need for resets.
Maintenance Tips to Prevent Future Errors
Regular maintenance is crucial for keeping Trane furnaces running smoothly and avoiding error codes. Homeowners should change air filters every 1-3 months, depending on usage and air quality. Clean filters improve airflow and reduce strain on the system.
Annual professional inspections are highly recommended. Technicians can spot potential issues before they trigger error codes. They’ll clean components, check electrical connections, and ensure proper combustion.
Keeping the area around the furnace clear of dust and debris is important. This helps maintain proper airflow and prevents overheating. Vacuum the furnace area regularly and avoid storing items too close to the unit.
Checking and cleaning the flame sensor annually can prevent ignition-related errors. A dirty sensor may cause the furnace to shut off unexpectedly. Gently clean it with fine-grit sandpaper or a soft cloth.
Homeowners should listen for unusual noises and watch for changes in performance. Addressing minor issues promptly can prevent more serious problems and error codes later on.
Ensuring proper thermostat settings and programming can reduce unnecessary cycling and wear on the furnace. Set reasonable temperatures and use programmable features to optimize efficiency.
Keeping vents and registers open and unobstructed throughout the home helps maintain proper airflow. This reduces strain on the furnace and can prevent overheating-related errors.
When to Call a Professional Technician
While some Trane furnace error codes can be resolved through simple troubleshooting, certain situations require professional assistance. Call a certified HVAC technician if:
- The error code persists after attempting basic fixes
- You smell gas or notice unusual odors
- The furnace makes loud or strange noises
- The system frequently cycles on and off
Professional help is also necessary for:
- Electrical issues or wiring problems
- Faulty control boards or sensors
- Cracked heat exchangers
- Complex blower motor malfunctions
Safety should always be the top priority. If you’re unsure about diagnosing or fixing an issue, it’s best to contact a professional.
Trane recommends annual maintenance by certified technicians to prevent major problems and ensure optimal performance. Regular check-ups can catch potential issues early, saving time and money in the long run.
Keep records of error codes and any attempted fixes. This information can help technicians quickly identify and resolve problems during service calls.
Remember, working with gas lines, electrical components, or complex mechanical systems without proper training can be dangerous. When in doubt, always opt for professional expertise to maintain your Trane furnace safely and efficiently.
How to Avoid Being Ripped Off and Get a Fair Repair Price
Finding the right furnace repair expert can be tricky—some companies offer rock-bottom prices because they’re inexperienced or have poor reputations, while others charge far too much for the same work. That’s why the smartest way to get quality repairs at a fair price is to compare estimates from top-rated local pros. Meet with each, learn about their history and the experience of the technicians that will do the work. Choose an experienced furnace repair contractor with reasonable rates. You can expedite this process by using our Free Local Estimates service.
When you fill out a quick form and submit it, you’ll soon be contacted by three of the top furnace repair and installation companies near you. They are prescreened for experience, and all are licensed and insured for your protection. Click below to get started and protect your home and wallet today.
Warranty and Support Resources
Trane offers comprehensive warranty coverage for their furnace products. Most models come with a standard 10-year limited warranty on parts. Some high-efficiency units may qualify for extended coverage.
Homeowners can register their Trane furnace online to activate the full warranty benefits. The registration process is quick and simple, requiring basic information about the unit and installation.
For troubleshooting assistance beyond this guide, Trane provides several support options:
- Online FAQs and troubleshooting articles
- PDF manuals available for download
- Live chat support on the Trane website
- Toll-free customer service phone line
Trane also maintains a network of independent dealers across North America. These certified professionals can provide in-person diagnostics, repairs, and maintenance services.
To locate a nearby Trane dealer, customers can use the dealer locator tool on the company website. Simply enter a zip code or city name to find authorized service providers in the area.
For warranty claims or part replacements, homeowners should contact their local Trane dealer. The dealer can verify warranty coverage and handle the necessary paperwork for processing claims.
Frequently Asked Questions
Trane furnace error codes provide valuable diagnostic information. Understanding common codes and reset procedures helps homeowners troubleshoot issues efficiently.
What steps are involved in resetting error codes on a Trane furnace?
To reset error codes on a Trane furnace, turn off the power at the circuit breaker. Wait 30 seconds, then restore power. This often clears minor faults.
For persistent errors, consult the user manual. Some models have a reset button on the control board.
How can one interpret the meaning of different LED flash patterns on a Trane heat pump?
LED flash patterns on Trane heat pumps indicate specific issues. One flash typically signals a communication problem. Two flashes often point to a pressure switch fault.
Three flashes may indicate a compressor issue. Always refer to the unit’s manual for precise interpretations of flash codes.
What does a three-flash code indicate on a Trane furnace system?
A three-flash code on a Trane furnace usually signifies a pressure switch problem. This could mean the switch is stuck open or closed.
It may also indicate issues with the inducer motor or blocked flue pipes. Checking these components is crucial for resolving the error.
What are the implications of a four-flash error code on a Trane furnace?
A four-flash error code on a Trane furnace often indicates a high limit switch issue. This suggests the furnace is overheating.
Potential causes include restricted airflow, a faulty blower motor, or a dirty air filter. Addressing these factors can resolve the problem.
Where can I find a comprehensive list of Trane furnace error codes for troubleshooting?
The Trane furnace user manual contains a comprehensive list of error codes. It’s the primary resource for model-specific troubleshooting information.
Trane’s official website also offers downloadable manuals and guides. HVAC forums and professional technician resources can provide additional insights.
How does one accurately read and diagnose furnace error codes on American Standard models?
To read American Standard furnace error codes, observe the LED light on the control board. Count the number of flashes in each sequence.
Consult the unit’s manual to match the flash pattern with the corresponding error code. This helps pinpoint the specific issue for accurate diagnosis.
