Common American Standard Furnace Error Codes List
When an American Standard furnace encounters an issue, it will display an error code to help diagnose the problem. These error codes can be found on the control board, either as a flashing LED sequence or on a display. To access the control board and inspection port, refer to the furnace glossary for help identifying parts and terms.
Accessing the Error Codes
To view the error codes, follow these steps:

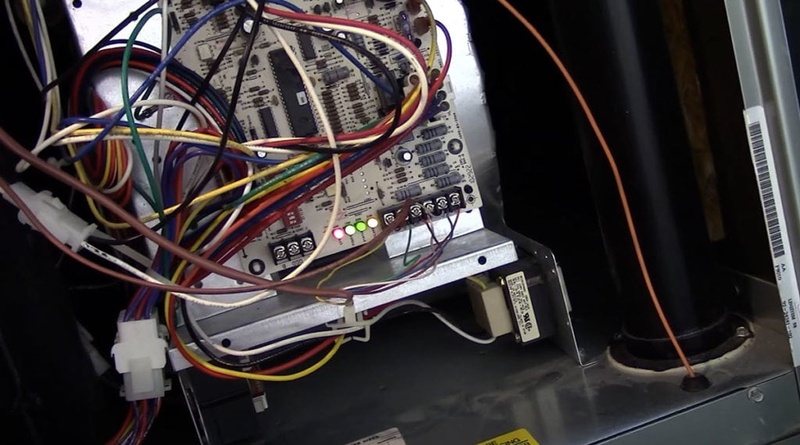

- Locate the control board and inspection port on your furnace.
- Access the inspection port according to the manufacturer’s instructions.
- Observe the flashing LED sequence or display code, which may repeat in a loop.
- Carefully watch the sequence or digits and make note of them.
- Match the code with the corresponding error in the list below.
Common Error Codes
| Error Code | Description | Troubleshooting Steps |
|---|---|---|
| LED off | No power | Continue to the Power diagnostic |
| LED flashing slowly | Normal operation, no call for heat | Continue to the Thermostat diagnostic |
| LED flashing quickly | Normal operation, furnace should be running or cycling | Continue to the Secondary diagnostic |
| LED on, not flashing | Control board problem | Possible wiring problem, transformer issue, or faulty control board. Book a professional repair. |
| 2 flashes | Lock out on retries | Continue to the Secondary diagnostic |
| 3 flashes | Pressure switch error | Continue to the Secondary diagnostic |
| 4 flashes | Open limit switch | Continue to the Secondary diagnostic |
| 5 flashes | Flame sensed when gas valve off | Possible faulty gas valve or control board. Book a professional repair or continue to the Gas valve diagnostic |
| 6 flashes | Line voltage polarity incorrect | Possible wiring, transformer, or control board failure. Book a professional repair. |
| 7 flashes | Gas valve circuit problem | Possible faulty gas valve or control board. Book a professional repair or continue to the Gas valve diagnostic |
| 8 flashes | Low flame sensor | Faulty flame sensor, igniter, or gas valve. Book a professional repair or continue to the Flame sensor, Igniter, or Gas valve diagnostic |
| 9 flashes | Igniter problem | Faulty igniter or gas valve. Book a professional repair or continue to the Igniter diagnostic |
Remember, when troubleshooting, do not turn off the power to the furnace unless instructed otherwise, as this will clear the current error code. If the issue persists or you are unsure about how to proceed, it is always best to contact a professional for assistance to ensure the safe and proper operation of your American Standard furnace.
Troubleshooting Basics
Addressing American Standard furnace error codes requires proper safety measures, essential tools, and a systematic approach to diagnostics. These fundamentals lay the groundwork for effective troubleshooting.
Safety Precautions
Turn off the furnace power before starting any work. Locate the main electrical switch or circuit breaker and switch it off. Shut off the gas supply to the furnace as well.
Wear protective gear, including safety glasses and gloves. Ensure proper ventilation in the work area to prevent inhaling fumes or dust.
Allow the furnace to cool completely before touching any components. Hot surfaces can cause severe burns.
Tools and Equipment Needed
Gather necessary tools before beginning troubleshooting. A multimeter is essential for testing electrical components and continuity. Keep a flashlight handy for inspecting dark areas of the furnace.
Have screwdrivers, both flathead and Phillips, readily available. Wire strippers and pliers may be needed for electrical work.
Keep a furnace manual nearby for reference. It contains specific information about your American Standard model and its error codes.
Initial Diagnostic Steps
Start by checking the thermostat settings. Ensure it’s set to “heat” mode and the temperature is above the current room temperature.
Inspect the air filter. A clogged filter can trigger error codes related to airflow issues. Replace if dirty.
Check the circuit breaker to ensure it hasn’t tripped. Reset if necessary.
Examine the furnace’s LED light. Note the blink pattern, as it corresponds to specific error codes in American Standard furnaces.
Listen for unusual noises during startup. Strange sounds can indicate mechanical problems.
Thermostat Troubleshooting
Proper thermostat function is crucial for maintaining an efficient and comfortable heating system. Issues with thermostat settings or wiring can lead to various furnace problems.
Checking Thermostat Settings
Verify that the thermostat is set to “Heat” mode and the temperature is set higher than the current room temperature. Check if the display is functioning correctly and showing accurate readings. Replace batteries if the display is blank or dim.
Ensure the thermostat’s time and day settings are correct, as this affects programmed schedules. Review and adjust programmed temperature settings if heating cycles seem irregular.
Clean the thermostat’s interior gently with a soft brush to remove dust or debris that may interfere with its operation. Consider recalibrating the thermostat if temperature readings seem inaccurate.
Wiring and Connection Concerns
Inspect the thermostat wiring for loose, frayed, or disconnected wires. Tighten any loose connections and replace damaged wires. Verify that each wire is connected to the correct terminal on both the thermostat and furnace control board.
Check for corrosion on wire terminals or connectors, which can impede electrical flow. Clean corroded areas with fine-grit sandpaper or replace severely corroded components.
Ensure the thermostat is level on the wall, as an uneven installation can affect its internal mercury switch in older models. Test continuity in thermostat wires using a multimeter to identify any breaks in the circuit.
Advanced Troubleshooting Techniques
Advanced furnace troubleshooting requires specialized tools and methods to pinpoint elusive issues. These techniques allow technicians to diagnose complex problems and restore optimal furnace performance.
Multimeter Testing Procedures

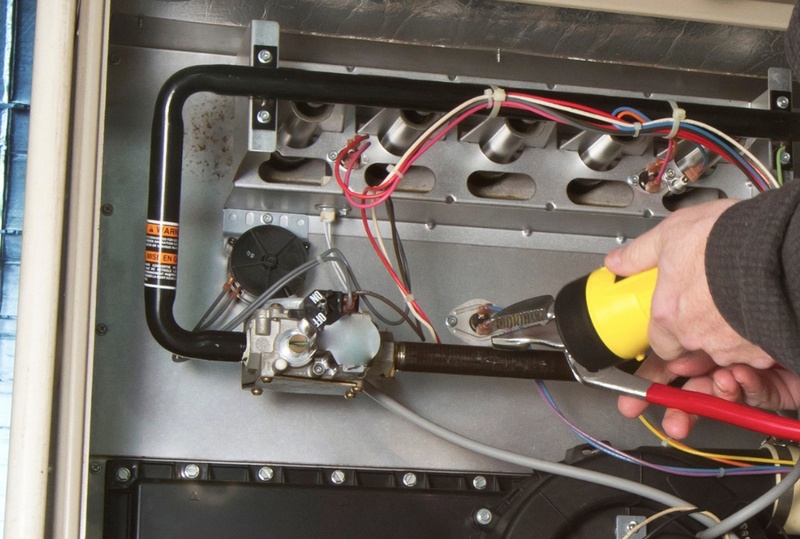

Multimeters are essential for testing electrical components in American Standard furnaces. To check a limit switch, set the multimeter to continuity mode and touch the probes to the switch terminals. A beep indicates a closed circuit and proper function.
For thermostat testing, disconnect wires and set the multimeter to measure DC voltage. Touch the probes to the R and W terminals. The reading should match the system’s voltage when calling for heat.
To assess the igniter, use the ohms setting. A reading between 40-90 ohms typically indicates a working igniter. Higher readings may signal impending failure.
Component Bypass Tests
Bypassing components can isolate malfunctions in American Standard furnaces. To bypass a pressure switch, carefully disconnect its wires and connect them directly. If the furnace runs, the switch likely needs replacement.
For flame sensor issues, clean the sensor with fine sandpaper. If problems persist, temporarily ground the flame sensor wire. A functioning furnace indicates a faulty sensor.
To test the control board, jumper the R and W terminals on the thermostat. If the furnace starts, the issue may lie in the thermostat or wiring.
Gas Flow Analysis
Proper gas flow is crucial for efficient furnace operation. Use a manometer to measure gas pressure at the inlet valve. Compare readings to manufacturer specifications.
Check the burner flames. They should be steady and blue. Yellow flames indicate improper air-to-fuel ratio. Adjust the air shutter if needed.
Inspect the gas valve for proper operation. Listen for the characteristic click when the furnace calls for heat. No sound may indicate a faulty valve or control board issue.
Replacement Parts and Repair Options
When troubleshooting an American Standard furnace, certain components may require replacement. Common parts that often need replacing include igniters, flame sensors, control boards, and blower motors.
Many homeowners opt to purchase replacement parts online or from local HVAC supply stores. Websites like RepairClinic and Amazon offer a wide selection of American Standard furnace parts.
For those comfortable with DIY repairs, installing simple components like igniters or flame sensors can be straightforward. However, more complex repairs involving electrical work or gas lines should be left to professionals.
Licensed HVAC technicians have the expertise to diagnose issues accurately and perform repairs safely. They can also source genuine American Standard parts to ensure compatibility and optimal performance.
Some repair companies offer maintenance plans that include regular inspections and discounted repair services. These plans can help prevent major breakdowns and extend the lifespan of the furnace.
For older furnaces, weighing the cost of repairs against replacement is important. If repair costs exceed 50% of a new furnace’s price, replacement may be more economical in the long run.
When selecting replacement parts or repair services, prioritize quality and reliability to ensure the furnace operates safely and efficiently for years to come.
When to Call a Professional Technician
While many American Standard furnace error codes can be resolved through basic troubleshooting, certain situations require professional expertise. Homeowners should contact a certified HVAC technician if they encounter persistent or complex issues.
Call a professional if error codes persist after attempting basic fixes. Repeated system shutdowns or failure to start also warrant expert attention. Strange noises, unusual odors, or visible damage to furnace components are clear signs to seek help.
For safety reasons, never attempt repairs involving electrical components or gas lines. These tasks pose significant risks and should only be handled by qualified technicians. Additionally, problems with the heat exchanger require immediate professional inspection due to potential carbon monoxide hazards.
Consider calling a technician if your furnace is over 15 years old and experiencing frequent breakdowns. An expert can assess whether repair or replacement is the most cost-effective option. They can also perform thorough maintenance to extend the unit’s lifespan and improve efficiency.
Remember that regular professional maintenance can prevent many issues and catch potential problems early. Schedule annual inspections to keep your American Standard furnace running smoothly and safely.
How to Avoid Being Ripped Off and Get a Fair Repair Price
Finding the right furnace repair expert can be tricky—some companies offer rock-bottom prices because they’re inexperienced or have poor reputations, while others charge far too much for the same work. That’s why the smartest way to get quality repairs at a fair price is to compare estimates from top-rated local pros. Meet with each, learn about their history and the experience of the technicians that will do the work. Choose an experienced furnace repair contractor with reasonable rates. You can expedite this process by using our Free Local Estimates service.
When you fill out a quick form and submit it, you’ll soon be contacted by three of the top furnace repair and installation companies near you. They are prescreened for experience, and all are licensed and insured for your protection. Click below to get started and protect your home and wallet today.
Warranty and Manufacturer Support Information
American Standard offers comprehensive warranty coverage for their furnaces. Most models come with a 10-year limited warranty on parts and a lifetime limited warranty on the heat exchanger. Registration within 60 days of installation is required to activate the full warranty terms.
For warranty service, homeowners should contact their local American Standard dealer. The dealer can assist with troubleshooting, repairs, and warranty claims. Keep your proof of purchase and installation date handy when contacting support.
American Standard provides several ways to access support:
• Customer Care: 1-855-260-2975 (Mon-Fri 8am-8pm, Sat 9am-5pm EST)
• Email: customercare@americanstandardair.com
• Live Chat: Available on the American Standard website
• Dealer Locator: Find certified technicians in your area
The manufacturer’s website offers additional resources like product manuals, FAQs, and how-to videos. These can help diagnose issues before contacting support. For error codes not resolved through basic troubleshooting, professional service is recommended.
American Standard emphasizes the importance of annual maintenance by a qualified technician. Regular tune-ups can prevent many common issues and may be required to maintain warranty coverage.
Frequently Asked Questions
American Standard furnace error codes can be confusing. These questions address common issues and provide guidance for troubleshooting problems with your furnace.
How to interpret the blinking light error codes on an American Standard furnace?
Blinking light codes on American Standard furnaces indicate specific issues. Count the number of flashes between pauses to determine the error code. Consult your furnace’s manual or American Standard’s website to match the code to its corresponding problem.
What steps should be taken to troubleshoot an American Standard furnace that is not working?
Check the thermostat settings and batteries first. Ensure the furnace has power and the gas supply is on. Inspect the air filter and replace if dirty. Verify all vents and registers are open and unobstructed.
What do repeated flashing codes indicate on an American Standard furnace?
Repeated flashing codes signify persistent issues. These may include faulty sensors, ignition problems, or airflow restrictions. Note the specific code and frequency to help diagnose the problem accurately.
Where can one find a manual for American Standard furnace troubleshooting?
American Standard furnace manuals are available on the manufacturer’s website. Enter your model number to download the correct manual. Local HVAC suppliers may also provide printed copies upon request.
How can the reset feature be used to resolve an issue with an American Standard furnace?
Locate the reset button on your furnace, typically near the blower compartment. Press and hold for 30 seconds, then release. Wait for the furnace to restart. This can clear minor electronic glitches.
What specific actions should be taken when an American Standard furnace displays a CP1 code?
A CP1 code indicates a problem with the control board. Check all wire connections to ensure they’re secure. If the issue persists, the control board may need replacement by a qualified technician.
Maintenance Tips to Prevent Future Issues
Regular maintenance is crucial for preventing American Standard furnace issues and error codes. Schedule annual professional inspections to catch potential problems early.
Replace air filters monthly or as recommended by the manufacturer. Clean filters improve airflow and system efficiency.
Keep the area around the furnace clear of debris and flammable materials. This ensures proper ventilation and reduces fire hazards.
Clean the blower assembly and fan blades annually. Remove dust and buildup to maintain optimal performance.
Check and clean the condensate drain line regularly. A clogged drain can trigger error codes and cause water damage.
Inspect the thermostat batteries annually and replace as needed. Weak batteries can lead to communication errors with the furnace.
Lubricate moving parts like fan motors and bearings according to the manufacturer’s instructions. This reduces wear and extends component life.
Check for loose electrical connections and tighten if necessary. Loose wires can cause intermittent operation or error codes.
Monitor your furnace’s performance throughout the heating season. Address unusual noises, odors, or temperature fluctuations promptly.
Keep vents and registers unobstructed to ensure proper airflow throughout your home. This helps maintain system efficiency and prevents overheating.
