Goodman Furnace Error Codes Troubleshooting Guide: Quick Solutions for Common Issues

Understanding Goodman Furnace Error Codes

Goodman furnace error codes provide valuable diagnostic information to identify and resolve issues. These codes use LED blink patterns and specific numbers to communicate problems with various furnace components or functions.

Deciphering the LED Blink Patterns

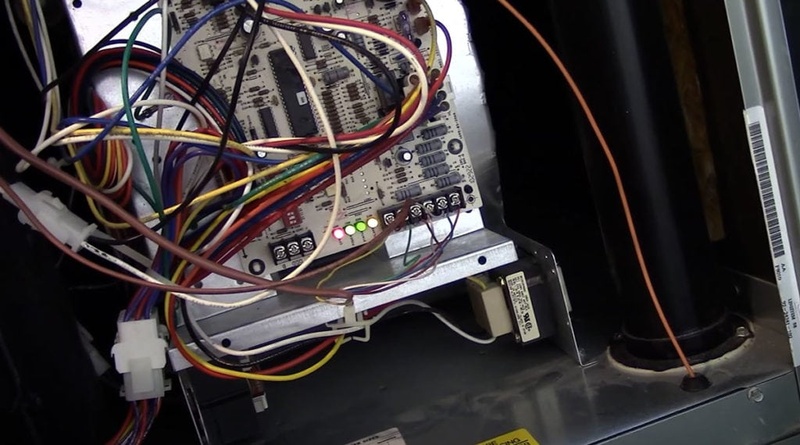

Goodman furnaces use a diagnostic LED light to display error codes. The LED blinks in specific patterns to indicate different issues. To read the code, count the number of short blinks followed by a pause.

For example, 2 blinks followed by a pause indicates a pressure switch error. 3 blinks signal a lockout due to failed ignition attempts. 4 blinks point to a high limit switch problem.

It’s crucial to observe the LED for at least 1 minute to ensure accurate code interpretation. Some codes may alternate, so patience is key for proper diagnosis.

Common Error Code Meanings

Goodman furnaces use numeric codes to represent specific issues. Here are some frequent error codes and their meanings:

  • 31: Pressure switch open or closed
  • 32: Low flame signal
  • 33: Limit circuit fault
  • 34: Igniter circuit fault
  • 41: Blower motor fault

These codes help technicians pinpoint problems quickly. For instance, code 31 suggests checking the pressure switch and its connections. Code 34 indicates potential issues with the igniter or its wiring.

Referencing the furnace’s manual for a complete list of codes is recommended. This ensures accurate interpretation and appropriate troubleshooting steps for each specific error.

Diagnostic Tools and Equipment

Proper diagnostic tools are essential for troubleshooting Goodman furnace error codes effectively. A digital multimeter is indispensable for measuring voltage, resistance, and continuity in electrical components.

Technicians rely on manometers to check gas pressure and ensure proper fuel flow. Combustion analyzers help assess the furnace’s efficiency and detect potential issues with the burner or heat exchanger.

An infrared thermometer allows for quick temperature readings of various furnace parts without direct contact. This tool is particularly useful for identifying overheating components or inadequate heat distribution.

A carbon monoxide detector is crucial for safety during diagnostics. It alerts technicians to dangerous CO levels that may indicate incomplete combustion or a cracked heat exchanger.

Basic hand tools like screwdrivers, pliers, and wrenches are necessary for accessing internal components. A flashlight aids in visual inspections of hard-to-reach areas within the furnace.

Some technicians use specialized furnace diagnostic tools that can interpret error codes and provide step-by-step troubleshooting guidance. These advanced devices often connect to the furnace’s control board for comprehensive system analysis.

Proper protective equipment, including gloves and safety glasses, should always be used when working with furnaces to ensure technician safety during diagnostics and repairs.

Step-by-Step Troubleshooting Procedures

Systematic troubleshooting can help identify and resolve common Goodman furnace issues. Following these procedures in order can often pinpoint the problem without needing to call a technician.

Checking the Thermostat

Start by examining the thermostat settings. Ensure it’s set to “Heat” mode and the temperature is higher than the current room temperature. Replace batteries if needed.

Verify the thermostat’s wiring connections are secure. Loose wires can cause intermittent operation.

If the display is blank or erratic, the thermostat itself may be faulty. Consider testing with a known working thermostat to rule out this possibility.

Inspecting the Furnace Filters

Locate the furnace filter and remove it for inspection. A clogged filter restricts airflow, reducing efficiency and potentially triggering safety shutoffs.

Clean or replace filters monthly during heavy use seasons. Use the correct size and type for your specific Goodman model.

After replacing the filter, ensure the filter compartment door is properly closed. Some furnaces have a safety switch that prevents operation if the door is ajar.

Examining the Ignition System

For furnaces with electronic ignition, listen for clicking sounds when the furnace attempts to start. If no clicks are heard, the ignitor may have failed.

Visually inspect the ignitor for cracks or damage. A working ignitor should glow bright orange when activated.

Check for proper gas supply. Ensure the gas valve is fully open and there are no leaks. If you smell gas, exit immediately and call your gas company.

Evaluating the Flame Sensor

Locate the flame sensor, typically a thin metal rod near the burners. Over time, it can become coated with carbon deposits.

Turn off power to the furnace. Gently remove the sensor and clean it with fine-grit sandpaper or steel wool. Be careful not to bend or damage the sensor.

Reinsert the cleaned sensor, ensuring it’s positioned correctly in the flame path. Improper placement can cause false readings and furnace shutoffs.

Assessing Blower Motor Function

Listen for the blower motor to start shortly after the burners ignite. If it doesn’t, there may be an issue with the motor or its capacitor.

Check for any unusual noises like grinding or squealing, which can indicate bearing problems or other mechanical issues.

Inspect the blower wheel for debris or damage. A dirty or unbalanced wheel can cause vibrations and reduced airflow.

If the motor runs but there’s little airflow, check for blockages in the ductwork or a slipped blower belt in belt-driven systems.

Correcting Airflow Issues

Proper airflow is crucial for a Goodman furnace to function efficiently. Restricted airflow can lead to various error codes and performance issues. Homeowners can take several steps to address common airflow problems.

Regularly changing or cleaning the air filter is essential. A clogged filter impedes air movement, causing the system to work harder. Replace disposable filters every 1-3 months, depending on usage and environmental factors.

Check for blocked vents and registers throughout the home. Ensure furniture, drapes, or other objects are not obstructing airflow. Open all vents fully to maintain proper air circulation.

Inspect the ductwork for leaks, gaps, or disconnections. Seal any visible leaks with metal-backed tape or mastic sealant. Professional duct cleaning may be necessary if excessive dust or debris has accumulated over time.

Clean the blower wheel and motor to remove dirt buildup. This task may require professional assistance, as it involves accessing internal components of the furnace.

Verify the fan speed settings are correct for your home’s needs. A technician can adjust the settings if necessary to optimize airflow and system performance.

Consider upgrading to a variable-speed blower motor. These motors adjust airflow based on demand, improving efficiency and comfort throughout the home.

Repairing Electrical Connections and Wiring

Electrical issues are common causes of Goodman furnace errors. Loose or damaged wiring can trigger various fault codes and disrupt normal operation.

Start by inspecting all visible wires and connections. Look for signs of fraying, melting, or discoloration. Tighten any loose wire nuts or terminal connections.

Use a multimeter to test continuity and voltage at key points in the electrical system. This can help pinpoint where a circuit may be broken or shorting out.

Common areas to check include:

• Thermostat wiring
• Flame sensor connections
• Blower motor wiring
• Control board terminals
• Limit switch connections

Replace any damaged wires with the correct gauge and temperature rating. Always use wire nuts or crimp connectors approved for HVAC applications.

For burnt or melted wire insulation, cut back to undamaged sections before splicing. Avoid exposed copper that could cause shorts.

Consult the furnace wiring diagram when reconnecting components. Incorrect wiring can lead to further malfunctions or safety issues.

Consider having a professional HVAC technician perform electrical repairs if you’re unsure about proper procedures. Working with live voltage carries risks of shock or fire if done improperly.

Cleaning and Maintenance Tips

Regular cleaning and maintenance of your Goodman furnace can prevent many common error codes. Changing the air filter every 1-3 months is crucial for optimal performance. A clogged filter restricts airflow, potentially triggering error codes.

Vacuum dust and debris from the blower compartment annually. This simple task improves airflow and efficiency. Be sure to turn off power to the furnace before cleaning.

Inspect the flame sensor rod yearly and clean it gently with fine sandpaper if needed. A dirty sensor can cause ignition failures and related error codes.

Check vents and exhaust pipes for blockages or damage. Clear any obstructions to ensure proper ventilation and prevent carbon monoxide buildup.

Lubricate the blower motor bearings annually if they have oil ports. This reduces wear and extends the motor’s lifespan.

Schedule professional maintenance annually. A technician can perform a thorough inspection, clean components, and identify potential issues before they lead to error codes.

Keep the area around the furnace clear of clutter and flammable materials. This promotes safety and allows easy access for maintenance.

Resetting the Furnace After Error Code Detection

After identifying and addressing a Goodman furnace error code, resetting the system is crucial to restore normal operation. The reset process typically involves a few simple steps.

First, locate the furnace’s power switch. Turn it off and wait for 30 seconds. This brief pause allows the system to fully power down and clear any residual errors.

Next, flip the power switch back on. The furnace should now attempt to restart. Listen for the usual startup sounds and observe if the error code reappears on the display panel.

If the error persists, consult the furnace manual for specific reset instructions. Some models may require pressing a dedicated reset button or following a particular sequence of steps.

For safety, it’s advisable to turn off the gas supply before resetting. Remember to turn it back on afterward if no issues are detected.

In cases where the error code continues to display after resetting, professional assistance may be necessary. A qualified HVAC technician can perform a thorough diagnosis and resolve underlying problems.

Regular maintenance can help prevent frequent error codes. Schedule annual inspections to keep the furnace in optimal condition and reduce the need for resets.

When to Seek Professional Help

While many Goodman furnace error codes can be addressed through basic troubleshooting, certain situations require expert assistance. Homeowners should contact a certified HVAC technician if they encounter persistent or complex issues.

Professional help is necessary when dealing with gas-related problems. Any signs of gas leaks, such as a strong odor or hissing sounds, demand immediate attention from a qualified technician.

Electrical issues also warrant professional intervention. If the furnace repeatedly trips circuit breakers or exhibits signs of electrical malfunction, it’s time to call in an expert.

For error codes related to critical components like the control board or ignition system, professional diagnosis is crucial. These parts often require specialized knowledge and tools for proper repair or replacement.

Recurring error codes, despite attempted troubleshooting, indicate a need for professional assessment. A technician can identify underlying issues that may not be apparent to homeowners.

Safety concerns always necessitate expert help. Any signs of overheating, unusual noises, or visible damage to the furnace should be addressed by a professional immediately.

Regular maintenance by a certified technician can prevent many issues and extend the lifespan of the furnace. Annual inspections are recommended to ensure optimal performance and safety.

Preventive Measures to Avoid Future Errors

Regular maintenance is crucial for preventing Goodman furnace errors. Schedule annual inspections by a qualified HVAC technician to catch potential issues early.

Replace air filters monthly or as recommended by the manufacturer. Clean filters improve airflow and reduce strain on the system.

Keep the area around the furnace clear of debris and flammable materials. Ensure proper ventilation to prevent overheating.

Check and clean the blower motor and wheel annually. Lubricate moving parts as needed to reduce wear and tear.

Inspect the heat exchanger for cracks or damage during each maintenance visit. A faulty heat exchanger can lead to dangerous carbon monoxide leaks.

Clean the flame sensor and burners regularly to prevent ignition problems. Use a soft cloth or fine-grit sandpaper for the flame sensor.

Test the thermostat regularly and replace batteries as needed. A malfunctioning thermostat can cause erratic furnace behavior.

Ensure all electrical connections are tight and free from corrosion. Loose wires can cause intermittent operation or system failures.

Keep outdoor exhaust vents clear of snow, ice, and debris. Blocked vents can cause the furnace to shut down as a safety measure.

Frequently Asked Questions

Goodman furnace error codes can be interpreted through blinking lights and digital displays. Understanding these codes helps diagnose and troubleshoot issues efficiently.

How can I interpret the blinking red light on my Goodman furnace?

A blinking red light on a Goodman furnace typically indicates an error or malfunction. The number of blinks corresponds to a specific error code. Count the blinks and refer to the furnace manual to identify the issue.

What do four flashing lights indicate on a Goodman furnace?

Four flashing lights on a Goodman furnace often signify an open limit circuit. This could be caused by a faulty limit switch, blocked airflow, or a malfunctioning blower motor. Check for obstructions in vents and ensure the blower is functioning properly.

What is the process for diagnosing Goodman furnace error codes?

Start by observing the LED light on the control board. Count the number of flashes and consult the furnace manual for the corresponding error code. Check the components associated with that code and perform necessary tests or replacements.

How do I interpret error codes on an Amana furnace?

Amana furnaces, being part of the Goodman Manufacturing Company, use similar error code systems. Count the LED flashes on the control board and refer to the Amana furnace manual to identify the specific issue.

What is the meaning behind different error codes on my furnace?

Error codes on furnaces represent various issues, from minor to severe. Common codes may indicate problems with ignition, flame sensors, pressure switches, or limit circuits. Each code corresponds to a specific component or system within the furnace.

Where can I find a complete list of furnace error codes for reference?

A complete list of furnace error codes can be found in the manufacturer’s manual that came with your Goodman furnace. If you’ve misplaced the manual, visit Goodman’s official website or contact their customer service for a digital copy or comprehensive error code list.
