When you have the thermostat on “cool” but the central air conditioner does not turn on, frustrations can build up very fast. The increase in the indoor temperature and the silent outdoor unit are the common indications that something is wrong, other than the mere user error.
There are several issues that may cause an AC system not to react to the cooling signal of the thermostat. Through a systematic investigation of the thermostat and the HVAC network in general, the vast majority of homeowners or technicians can identify the root cause of the problem and take specific measures to resume operation.
How a Thermostat Communicates with an AC System
A thermostat, usually driven by a low voltage circuit, signals the control board or contactor of the air conditioner.
On an occasion where the indoor temperature is above the setpoint, the thermostat must notify the outdoor condenser and indoor blower to turn on. The interruption of this chain of communication makes the AC to stay off. The variables include power failure to incorrect settings in the thermostat itself.
Digital thermostats usually use batteries or a “common” wire to power them, whereas smart thermostats might require more wiring to control Wi-Fi connection.
It should be well calibrated and wired: one wrongly placed wire can leave the unit idle. Knowing these relationships de-mystifies how apparently minor accidents such as dead batteries or loose terminals can cause a nonresponsive air conditioner.
9 Causes and Solutions of AC Thermostat Set to Cool but AC Won’t Run
1. Verifying Thermostat Settings and Calibration
Occasionally the most obvious answer is the right one: the thermostat may not be on “cool” or its set point is above room temperature.
Incorrect mode and setpoint are frequently found by checking the display.
In digital models, a battery that is dead can be replaced to bring the full functionality back in case the screen appears dim or blank.
With a programmable or smart thermostat, it is easy to ensure that the programmed schedules are in line with the current comfort requirements to avoid confusion.
Don’t Overpay for HVAC Services – Call 888-894-0154 Now to Compare Local Quotes!
The other problem that may be experienced in calibration is the misreading of the ambient temperature by the thermostat. A unit located in the direct sunlight or close to the heat source can feel a warmer room than it is. The problem of erratic on/off cycles is solved by repositioning or recalibrating the thermostat to reflect real indoor conditions.
The other minor detail that can affect mechanical thermostats is making sure that the device is leveled on the wall.
Once these fundamentals have been confirmed, any unresponsiveness that remains must be investigated further in terms of wiring, power, or HVAC elements.
2. Power Disruptions and Circuit Breakers
The outdoor unit is helpless even when the thermostat indicates that it is “cool” when the circuit breaker has tripped.
The breaker can be switched off by an overload or short, which removes voltage to the compressor and condenser fan. A brief inspection of the electrical panel at home will indicate whether the concerned breaker is in the off or the tripped position. Restoring it can be a temporary solution to the problem, but frequent visits show that there is a more serious electrical problem.
The AC can be overworked by clogged filters or damaged motors, which will increase current consumption and cause breakers to trip. One of the fuses in the control board of the indoor air handler may also blow, cutting the low-voltage signal of the thermostat. Examining these fuses and making sure that there are no loose connections of wiring in the outdoor disconnect box can be used to decide whether a technician is required. Electricity is an essential connection between the thermostat and actual cooling.

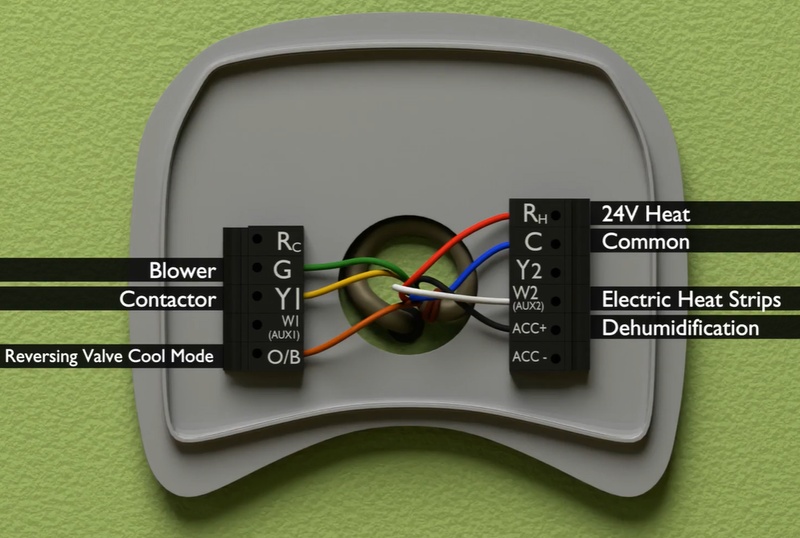

3. Wiring Issues and Loose Connections
Low-voltage signals are transmitted between the thermostat, indoor unit and outdoor condenser by thermostat wires.
Should a wire get disconnected, corroded or frayed, the signal to start cooling never gets to the AC. Basic tests include taking out the thermostat faceplate and making sure that every wire is well seated in the proper terminal. Minor contact problems can be solved by screw-down connectors being tightened or the wire end re-stripped.
Occasionally a bad wire is only detectable with a multimeter in continuity mode, testing one conductor at a time between the thermostat and air handler or control board.
Hidden wire breaks may be caused by brittle insulation, rodent damage, or previous DIY installations. When detected, the circuit is usually restored by splicing or replacing the broken part. Turning off the power before working with wires prevents shorts and can save a person a lot of pain.
4. Dirty or Obstructed Air Filters
Clogged air filter reduces air circulation in the HVAC system, which makes the evaporator coil hotter. This extra heat can over time trigger safety systems or shut down the system. The homeowner might hear the blower operating, yet the AC might cease obeying the thermostat when it calls to be cooled down because there is no cold air coming out of the vents.
These airflow issues can be solved by replacing a dirty filter or cleaning a reusable one. In the case of the heavily clogged filters, the unit may take a few minutes to reset. When the indoor blower or the outdoor condenser is short cycling, then there may be more severe blockages in other parts of the ductwork or coil fins.
Changing the filters regularly will ensure that the air pathways of the system are not clogged up and this will reduce the load on the system and allow the thermostat to respond consistently.
5. Clogged Condensate Drain or Safety Switch
Central ACs have the condensation of the evaporator coil drained into a pan. In case of clogging of the drain line, water may back up and a float switch is installed to stop overflows. This switch cuts the power to the compressor and occasionally the whole system and there is no cooling despite the thermostat being set to cool.
Unclogging a drain may consist of flushing the pipe with a combination of water and a mild detergent, or with a wet-dry vacuum. When water is flowing freely, the float switch will reset and the AC will go back to normal operation. When the clogs or algae build-up is frequent, a technician can install an access tee or suggest regular treatments to maintain the drain clear. Early treatment of condensate blockages keeps the system efficient and prevents water damages.

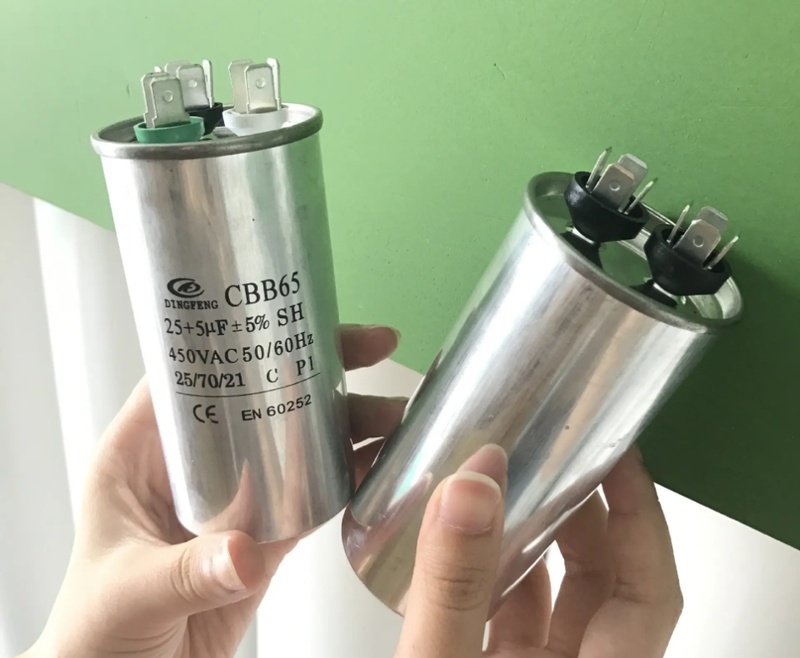

6. Capacitor and Contactor Malfunctions
Although the thermostat may be sending the right signal, the compressor and fan motors in the outdoor unit may not start when they have weak capacitors or a stuck contactor. The capacitor gives the additional kick to get over the start-up torque and when it wears out the only reaction may be a slight humming sound. In the meantime, a pitted or corroded contactor may stick in the open position, and thus the motors will not get voltage.
Testing the microfarad rating of the capacitor and looking at it visually are obvious indicators. A contactor whose points are burned or welded will not operate normally. The replacement of these components with those that are in line with the specifications of the manufacturer usually reinstates the connection between thermostat calls and active cooling. Although these problems are beyond the thermostat, they nonetheless seem to resemble thermostat problems when in reality, the mechanical parts in the outdoor unit are the cause.
7. Compressor or Motor Failure
The thermostat may be in the best condition, yet a seized compressor or a burned out condenser fan motor may leave the AC silent. In that situation, the outdoor unit will attempt to start and make clicks or short humming but never start. Internal motor damage may be diagnosed by a technician using a multimeter to measure winding resistance.
In case the compressor is seriously mechanically damaged, additional repair expenses may be close to, or even higher than, the cost of a new unit. Other home owners prefer a system replacement, particularly when the AC is approaching its average service life of 10 to 15 years. The understanding that the thermostat is not the only source of the problem saves time and resources, and technicians start searching the mechanical or electrical source of the problem beyond the influence of the thermostat.
8. Refrigerant Pressure Imbalances
Central air systems are dependent on accurate refrigerant charges to perform well.
Don’t Overpay for HVAC Services – Call 888-894-0154 Now to Compare Local Quotes!
The low-pressure switch is able to deactivate the compressor when the refrigerant levels are low as a result of leakages. On the other hand, when the system is overcharged, high-pressure switch can put things out. Both cases are like a bad thermostat since the AC will not react even though the thermostat is set correctly.
A qualified HVAC technician normally connects gauges to determine pressures on the low and high side. In case of reading that is outside the manufacturer specifications, a leak detection or system reclaim may be required. When the refrigerant has been balanced, and any sensors or switches have been reset, the AC will usually continue normal cooling cycles, under thermostat control. Proper charging is important in the performance of the system, energy efficiency, and the life of the compressor.
9. Control Board or Relay Errors
Contemporary HVAC systems employ control boards which coordinate fan speeds, compressor staging and safety switches. In case the control board cannot read the signal of the thermostat, the AC will not work. A no-cool situation can also be caused by a shorted relay on the board or corruption of software in a smart control module. Occasionally, homeowners can see an error code on the indoor unit or flashing LED patterns that represent certain board faults.
The normal operation is usually restored by replacing or resetting the control board when other electrical paths are okay. By making sure that the boards or relay modules are compatible with the system, mismatched signals are avoided. Since testing of these complicated boards requires special skills, the necessary voltage and continuity checks are usually done by a professional technician. Elimination of control board anomalies is a sure way of eliminating the thermostat as the problem.
Comparing Traditional and Smart Thermostats
Conventional mechanical thermostats are based on metal strips or mercury switches whereas newer digital models use software, sensors and Wi-Fi.
Mechanical models are less complex and more likely to drift on calibration. Digital versions provide sophisticated functions such as accurate scheduling, remote control and energy reports. But these added features also create new areas of possible failure like software bugs or improper system configuration.
In the case where the AC fails to turn on, the kind of thermostat can serve as a guide to troubleshooting. In the case of digital models, it may be useful to check whether there is a firmware update or do a factory reset.
Checking that there is a “common” wire will provide a stable power source to operate the processor of the thermostat. The knowledge of these technological variations helps to identify why a given thermostat might have a hard time initiating the cooling cycle regularly.
Short Cycling and Safety Lockouts
Sometimes the thermostat seems to be asking to be cooled, yet the system turns on and off in a short period of time. Oversized AC units, clogged filters, or miscalibrated thermostats can cause this so-called short cycling. Other systems have internal safety lockouts, which will stop the system in case short cycling will cause damage to the compressor.
Full cooling may be restored by correcting the cause of short cycling.
In extreme cases, the only solution may be to replace an air conditioner that is not of the right size. In minor problems, abrupt off cycles can be minimized by setting the temperature swing of the thermostat or by removing airflow blockages. It is important to understand that short cycling is not only caused by a bad thermostat in order to have a lasting solution.
Maintenance Practices to Keep the AC Responsive
Regular maintenance will make the thermostat, wiring, and mechanical parts work in unison. Airflow is stabilized by changing filters every month or at least every three months. Coil cleaning, contactor check, and a careful examination of electrical connections are some of the annual professional tune-ups. Repairing small problems, such as loose thermostat mounting or marginal capacitors, before they become bigger reduces the number of no-cool situations.
Having a clean environment around the condenser will avoid blockages that may indirectly lead to the shutting down of the system. Regular inspection of the thermostat setpoint and mode, particularly when the cooling season begins, prevents user-induced settings that may result in the AC being turned off. Such practices synchronize the system to make immediate responses whenever the thermostat requests cooling.

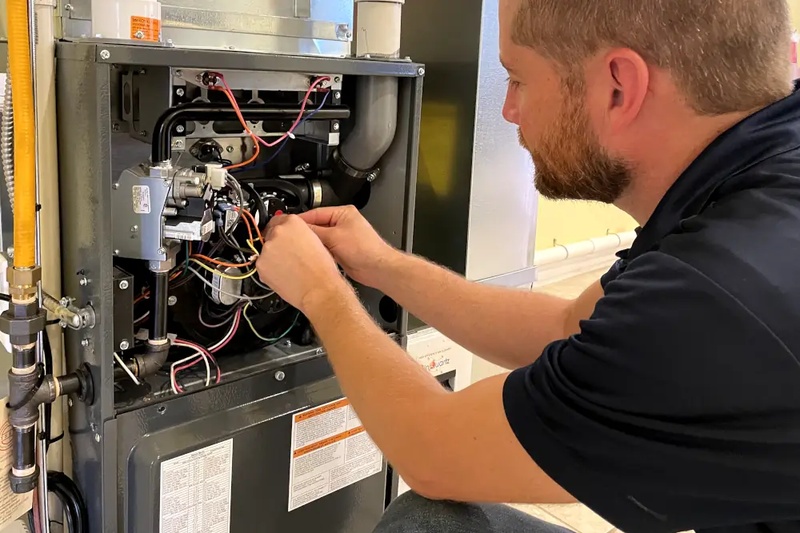

Professional Assistance vs. DIY Troubleshooting
Most of the initial tests can be done by homeowners such as resetting breakers or replacing thermostat batteries. But other activities like voltage reading, control board diagnosis or repairing leaking refrigerants need special skills. In case the issue cannot be resolved with basic troubleshooting, it is typically the most effective and safest option to call a certified HVAC technician.
The professionals are equipped with the means to measure the levels of refrigerant, test circuit boards, and eliminate several possible causes of failure during a single visit.
Don’t Overpay for HVAC Services – Call 888-894-0154 Now to Compare Local Quotes!
They also maintain safety standards that are important in dealing with high-voltage connections. Be it a defective thermostat wire or a damaged compressor part that is the cause of the absence of cooling, professional advice will help to make the right repairs and guarantee a stable and comfortable environment in the long run.
Repair Vs Replacement
When the AC remains silent due to significant mechanical failure or frequent issues, the owners may consider repairing it versus replacing the entire system.
The older units that have lost their efficiency can also be replaced with new and high-SEER units that introduce new humidity control and quieter operation.
In case the thermostat itself is old, upgrading the thermostat and the system can bring comfort into the modern age and reduce the energy bills.
However, not all failures are indicators of the death of a unit. In the case of a simple issue such as a wire break or a replacement of a contactor, specific repairs can fix the problem at a small fraction of the price.
A balanced decision is made by taking a careful consideration of long-term savings, repair frequency, and system age. Well maintained systems that are efficient tend to last long without any unexpected downtimes.
